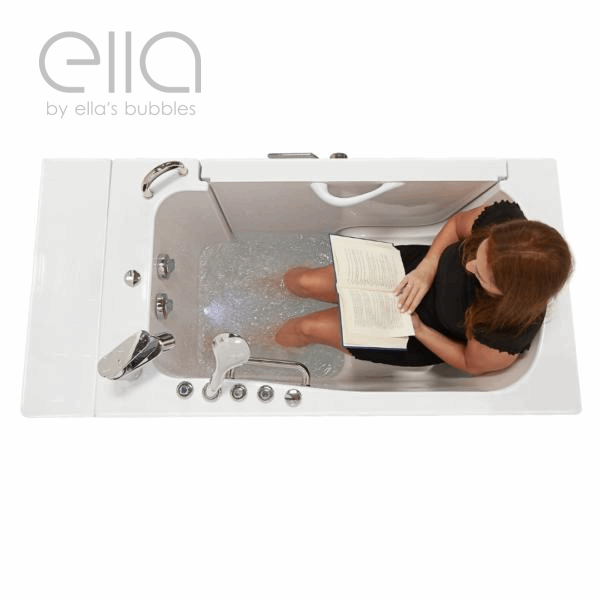

Ella Acrylic Transfer Wheelchair Accessible Walk In Tubs

Ella’s Bubbles delivers quality engineering in style with Ella Transfer Wheelchair Accessible Walk In Tubs. Each Ella walk in tub is equipped with a beautifully crafted lightweight yet sturdy aluminum L-shaped door giving you a tub with a unique high-end look that is easily accessible with its frameless entry. A low step-in threshold, textured slip resistant floor, molded seat as well as wall and/or deck mounted grab bars work in unison to allow for easy and safe entry and exit of the tub.

Read More

The acrylic shell is backed by a solid rustproof stainless-steel frame with adjustable leveling legs, giving you a safe, sturdy, and long-lasting walk-in bathtub. Ella Transfer Wheelchair Accessible Walk In Tubs are equipped with a unique gear and shaft driven 2-latch door that edges out our competition who typically use a single latch/lever system. A 2-latch door system provides a more secure and watertight door seal than the conventional single latch system, providing you with a leak-free bathing experience.

Ella Walk In Tubs range from standard dimensions with the Transfer, our space-saving Transfer26, to the wider format Transfer32 and out bariatric tub, the Transfer36. Choose from various jetting options like soaking, therapeutic hydro and air massages, or rejuvenating and softening Infusion™ Microbubble Therapy. Faucet options include our standard anti-scald Thermostatic Control Valve for the safety-conscious consumers, or you can select one of the fast-fill faucets available in classic and contemporary styles. Ella packages offer features like radiant heated seat and back rest to keep you comfortably warm as the tub fills or empties, aromatherapy to help stimulate your senses using essential oils, LED chromatherapy to aid in mood enhancement through colorful alternating hues, and ozone sterilization for easy maintenance with chemical-free, earth and bio-friendly technology. Scroll down to learn more about our walk in bath packages and take a tour.

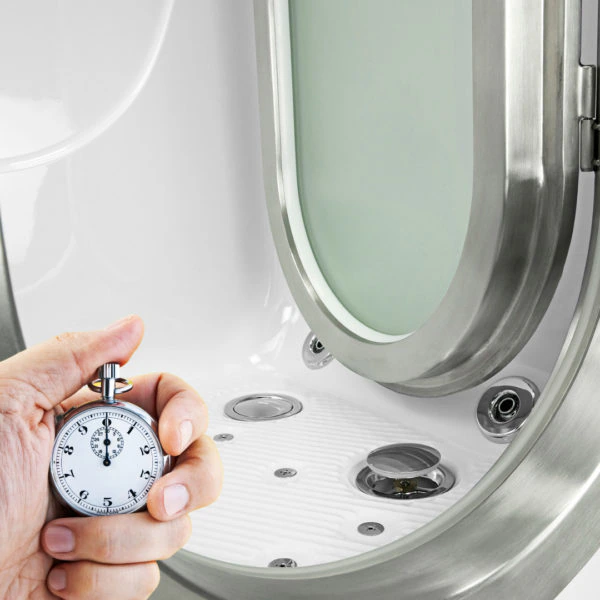

One of the best and exclusive features of our walk-in tubs is its Dual Drain Technology (DDT) which consists of two (2) independently operated 2” gravity driven drains. Each drain is outfitted with its own overflow and stainless-steel cable operated drain opener with extended handle for an easier grip. Typical drainage time is approximately +/-80 seconds at ideal in-home plumbing conditions. Having two gravity driven 2” drains not only provides you with quick and reliable drainage, but also acts as a safety feature in case if one drain fails, allowing you to safely drain and exit the walk-in tub. The two-inch drains can be connected using Tee or Y 2” pipe connectors to the standard 1 ½” or 2” house drain. If possible, it is recommended to connect into 2” or 3” house drain for a faster drainage time. Ella gravity driven Dual Drain drains are fast and reliable because they do not require electric pump. Whereas electrical driven drains may fail due to electrical shorts or power outages.

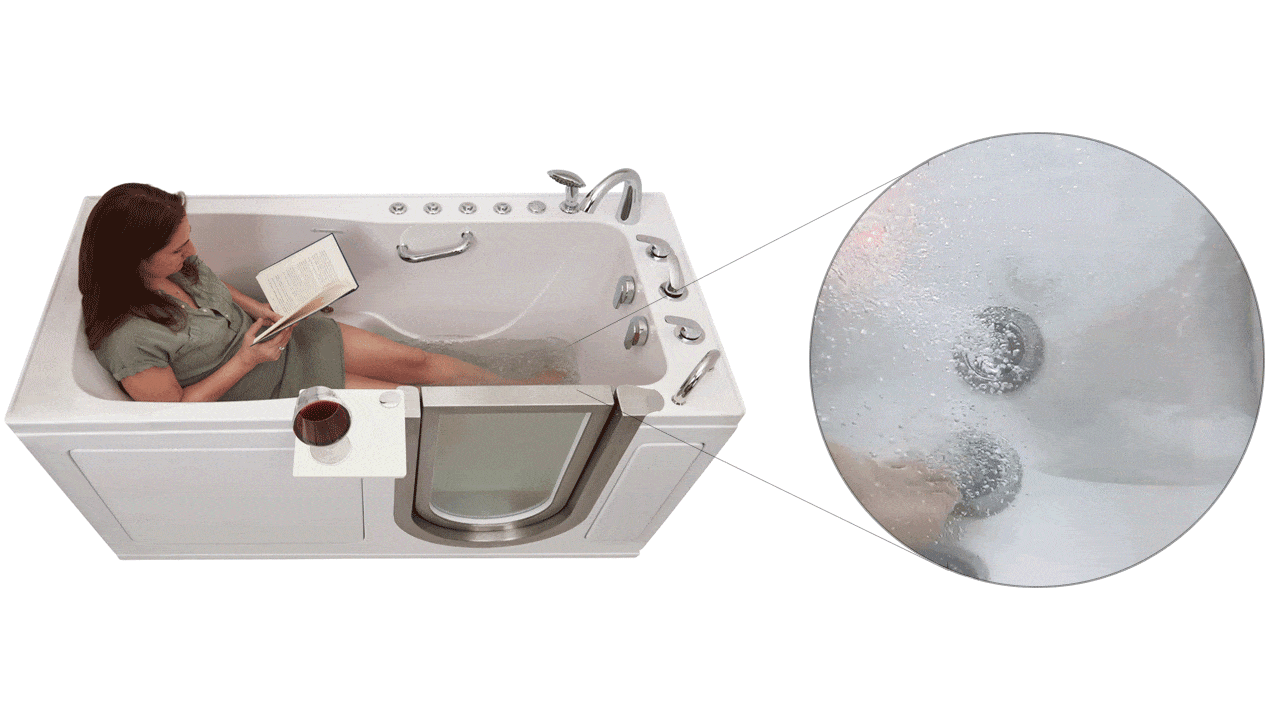

Our strategically designed jetting systems outshine our competitors by a longshot. Strategically positioned jetting ensures that you receive targeted and effective massaging where you need it the most. Ella’s offers a variety of sizes and jetting options to be able to fit your therapeutic needs. Below is a brief outline of our jetting systems. Please feel free to venture into the specific product pages for detailed jet counts and positioning based on the selected tub.

The hydro massage system includes a hydro pump with an in-line water heater, ecofriendly ozone sterilization, hydro massage intensity dial control, strategically positioned hydro jet system for targeted and effective massaging, and an on/off push control.

The air massage system includes an air pump with a 3-speed variable push control and strategically positioned air jet system for optimal therapeutic relief. A digital controller option is also available with dual massage (air and hydro) package however the on/off push controls are the most popular choice considering the ease of use. The air massage system also includes the auto-purge feature. This feature engages automatically 20 minutes after the pump has been turned off to purge water out of the air jet lines. The auto-purge will engage automatically and run for 120 seconds to ensure your system is clear and free of moisture and excess water helping to prevent the mildew build up.

Ella Infusion™ MicroBubble Therapy consists of a single microbubble jet connected to a hydro pump and microbubble tank system. The high-pressure hydro pump along with the microbubble tank brakes down the water molecules into billions of tiny bubbles which are then sent out through the single jet, filling your walk-in tub with billions of tiny bubbles, providing you with an unequivocal moisturizing and exfoliating therapeutic experience. These bubbles moisturize and exfoliate your skin while you bathe.

Push controls are standard on most packages as well as the most popular choice considering the ease of use. The push controls have a raised design for easy push on/off action. Digital controls are an option as well for those that want a sleeker option.

Aluminum L shape outward swing door with gear and shaft 2 latch door lock mechanism to assure equal pressure on the door gasket and leakproof door seal.

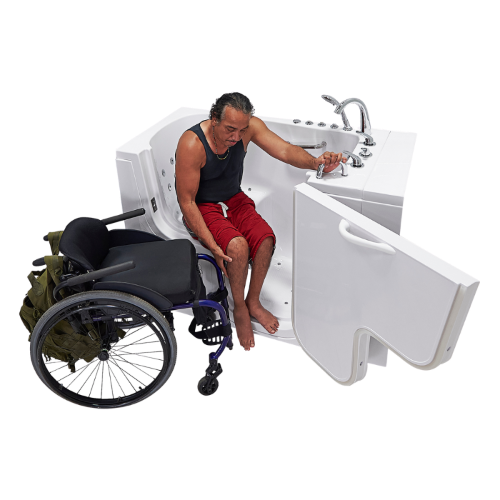

The L shape door opening allows for toilet clearance up to 21″ height and convenient transfer from the wheelchair into the seat over the soft and warm to touch acrylic shell. Our competition offers framed L shape doors making the slide in uncomfortably cold over a sharp aluminum frame. Our competition also offers a lever door lock system that allows only one latch vs. Ella 2 latch door lock.
wheelchair accessible The door is attached to the shell so there is no cold or sharp aluminum door frame in contact with bathers body during the transfer or slide into the bathtub. That makes this transition into the seat for bather very comfortable and pleasant.
Dual Drain Technology Ella gravity driven 2″ dual drain technology with independently operated 2 openers, 2 overflows for fast and reliable drainage and exit out of the walk-in tub.

For bathers who require maximum accessibility, an outward swing door Transfer Wheelchair Accessible Walk In Tub is the perfect choice. We offer a variety of models to suit your space. These wheelchair accessible walk in tubs can easily accommodate larger individuals or bathrooms.

outward swing door Transfer Wheelchair Accessible Walk In Tub
Dual Drain
Transfer Walk In Tub

Transfer Walk In Tub

30″W x 52″L

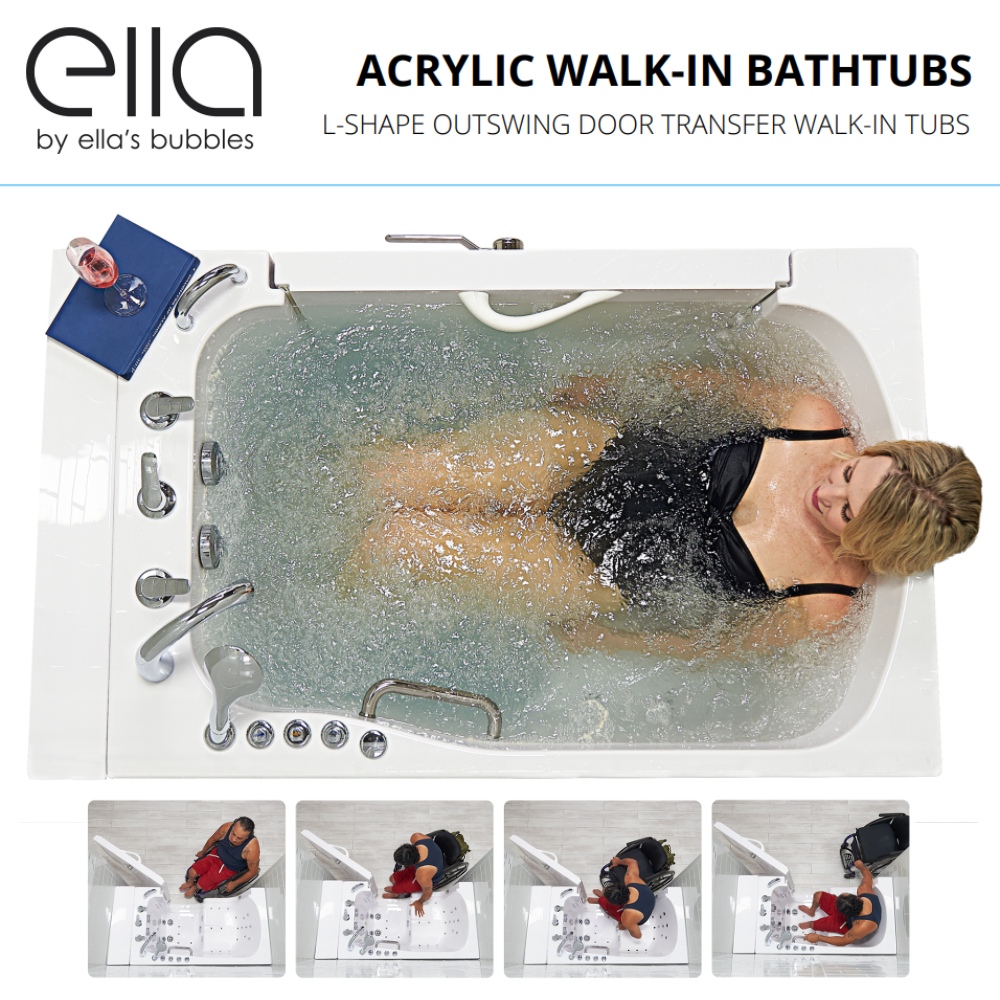

The Ella Transfer Wheelchair Accessible Bathtub is designed for bathers who use a wheelchair or for those who simply need an easy-to-enter bathtub. With a barrier-free sidewall design, the bather can conveniently open the L-shaped aluminum door and slide into the bathtub. Strategically positioned air and hydro jets allow for a supremely relaxing experience. Two pre-installed grab bars allow for easier access and maneuverability.

Dual Drain

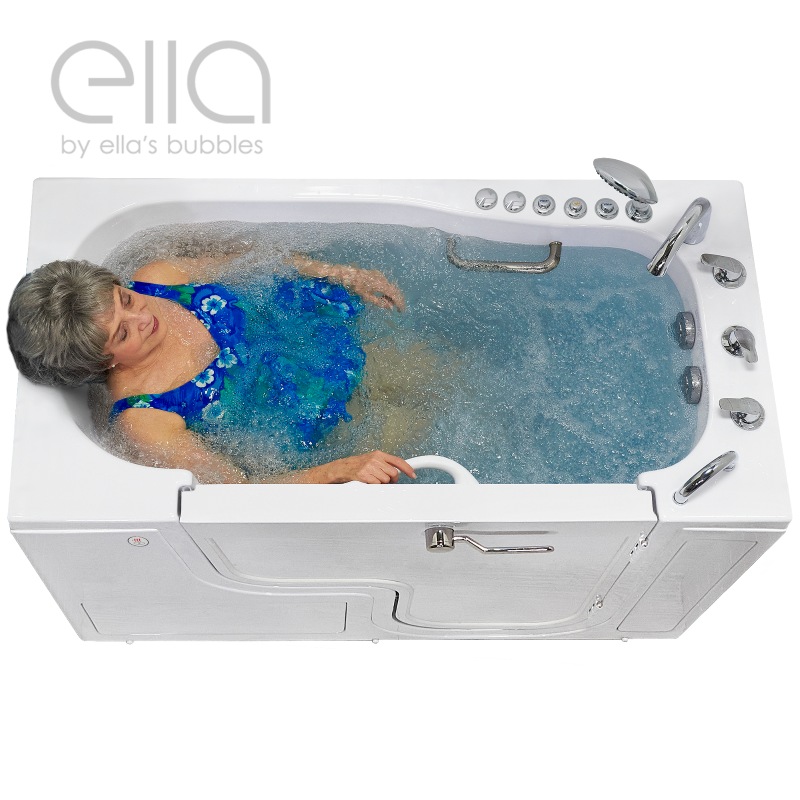

Transfer60 Walk In Tub

Transfer60 Walk In Tub

30″W x 60″L

The longer Ella Transfer 60 Wheelchair Accessible Bathtub is a wider design for bathers who use a wheelchair or for those who simply need an easy-to-enter bathtub. With a barrier-free sidewall design, the bather can conveniently open the L-shaped aluminum door and slide into the bathtub. Strategically positioned air and hydro jets allow for a supremely relaxing experience. Two pre-installed grab bars allow for easier access and maneuverability.

Dual Drain
Transfer32 Walk In Tub

Transfer32 Walk In Tub

32″W x 52″L

The Ella Transfer 32 Wheelchair Accessible Bathtub is a wider design for bathers who use a wheelchair or for those who simply need an easy-to-enter bathtub. With a barrier-free sidewall design, the bather can conveniently open the L-shaped aluminum door and slide into the bathtub. Strategically positioned air and hydro jets allow for a supremely relaxing experience. Two pre-installed grab bars allow for easier access and maneuverability.

Dual Drain

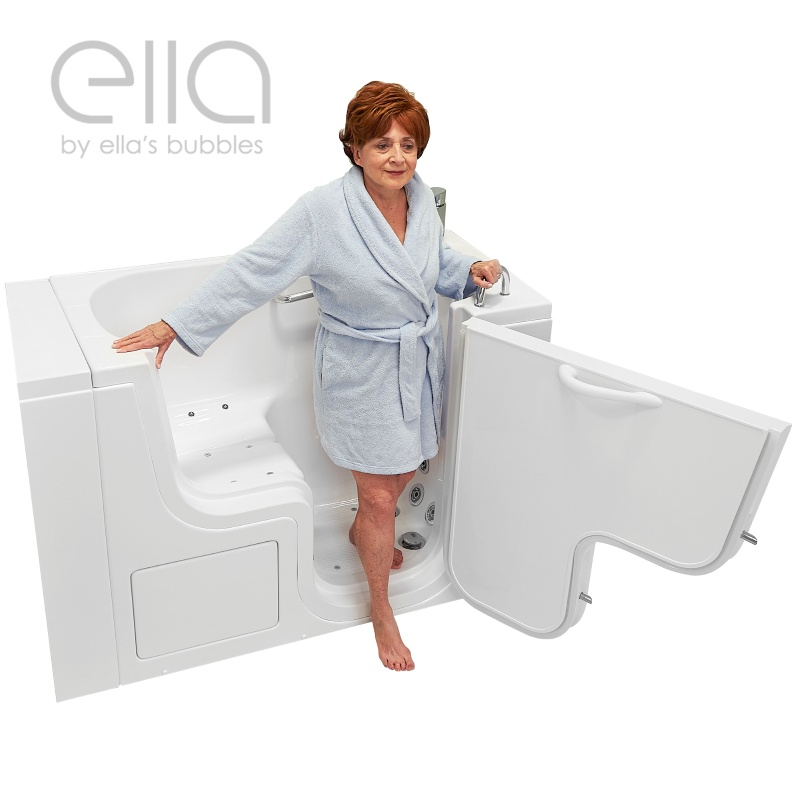

Transfer26 Walk In Tub

Transfer26 Walk In Tub

26″W x 52″L

The Ella Transfer26 Wheelchair Accessible Bathtub is designed for bathers who use a wheelchair or for those who simply need an easy-to-enter tub and a smaller width to fit in smaller bathrooms. With a barrier-free sidewall design, the bather can conveniently open the L-shaped aluminum door and slide into the bathtub. Strategically positioned air and hydro jets allow for a supremely relaxing experience. Two pre-installed grab bars allow for easier access and maneuverability.

Dual Drain

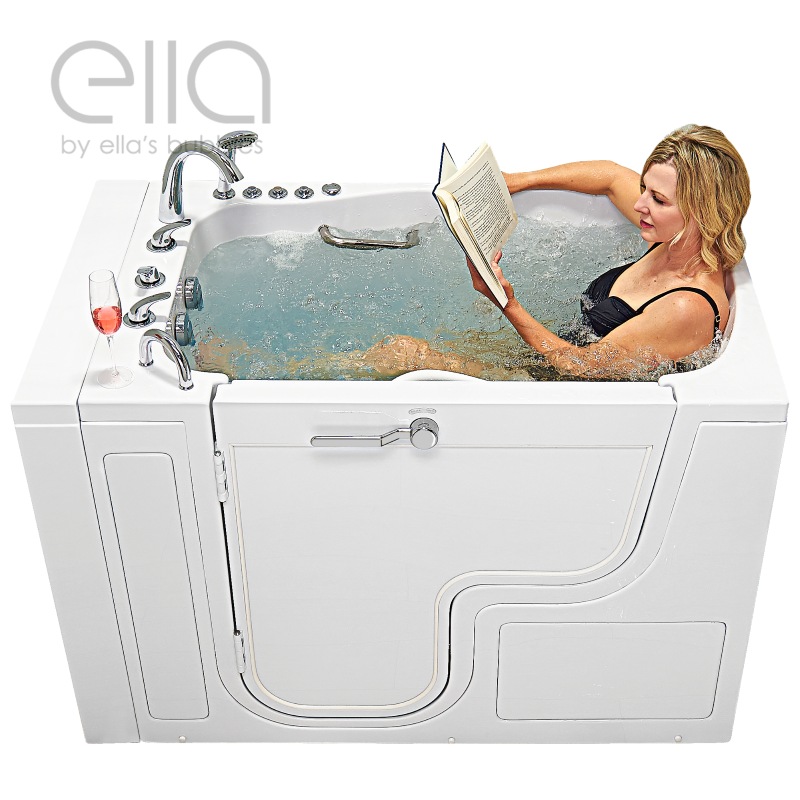

TransferXXXL Walk In Tub

TransferXXXL Walk In Tub

36″W x 55″L

The Ella TransferXXXL Wheelchair Accessible Tub is our extra wide design for bathers who use a wheelchair or for those who simply need an easy-to-enter bathtub. With a barrier-free sidewall design, the bather can conveniently open the L-shaped aluminum door and slide into the bathtub. Strategically positioned air and hydro jets allow for a supremely relaxing experience. Two pre-installed grab bars allow for easier access and maneuverability.

Dual Drain

Ella Acrylic Outward Swing Door Walk In Tubs

View More

Comparison Charts

Important Dimensions

Transfer Transfer32 Transfer26 Transfer60 TransferXXXL
Dimensions of Tub WxLxH 29x52x42 32x52x42 26x52x42 30x60x42 36x55x42
Dimensions of Crate WxLxH 32x54x50 34x54x50 30x54x50 32x62x50 38x60x50
Threshold Height 7″ 7″ 7″ 7″ 7″
Threshold Lowering Option 4.5″ 4.5″ 4.5″ 4.5″ 4.5″
Seat Width 22″ 24.5″ 20″ 22″ 29″
Seat Height 17″ 17″ 17″ 17″ 17″
Width of Door 36″ L Shaped 36″ L Shaped 36″ L Shaped 36″ L Shaped 36″ L Shaped



Important Data

Transfer Transfer32 Transfer26 Transfer60 TransferXXXL
Gallons USA (Unoccupied) 75 80 65 90 110
Gallons USA (Occupied) 45-55 45-65 30-40 55-75 65-85
Suggested Water Heater* 60 60 60 60 60
Approximate Drainage Time** 80 Seconds 80 Seconds 80 Seconds 80 Seconds 120 Seconds
Drain/Door Location Right or Left Right or Left Right or Left Right or Left Right or Left
Product Net Weight LBS 220 220 220 220 240
Product Shipping Weight LBS 300 300 300 300 320

*Suggested Water Heater size for a household with only a single bather. A household with any additional bathers should consider the next size available water heater.
**Approximate Drainage Time is under ideal plumbing conditions, your drainage times may vary.

Features

Transfer Transfer32 Transfer26 Transfer60 TransferXXXL
Grab Bar(s) 2 2 2 2 2
Number of Access Panels 3 3 3 3 3
Hydro Jets 13 13 13 13 13
Air Jets 16 16 16 16 16
